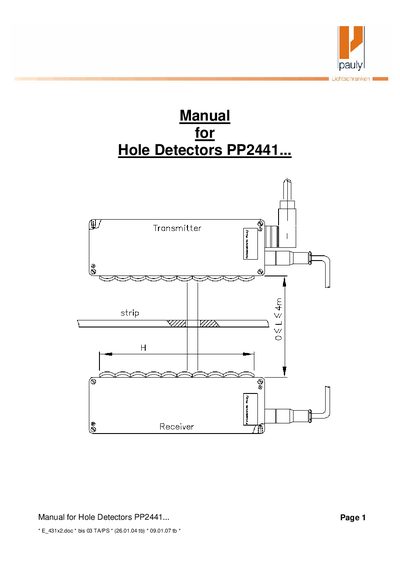

The Pauly PP2441 hole detector manual provides a general description of the device, its technical characteristics and the principle of operation. It explains how the transmitter emits infrared light through a hole in a strip and how the receiver and control unit generate an output signal.
The document includes ordering examples, assembly instructions, wiring diagrams, and detailed explanations of the control unit functions, including switch positions, potentiometer settings and power‑supply connections.
| Housing material | Al‑Cast |
|---|---|
| Supply voltage | 230/115 VAC, 10 VA |
| Output relay rating | 250 VAC/8 A, 150 W/1 500 VA, 1 × c‑o‑c |
| Transmitter light wavelength | GaAs 880 nm (invisible) |
| Normal access time (recommended) | ≤18 ms |
| Quick access time (recommended) | ≤3 ms |
The recommended working range for normal operation is up to 18 ms per switch transition.
It can be powered from 230 VAC or 115 VAC with a 10 VA consumption.
