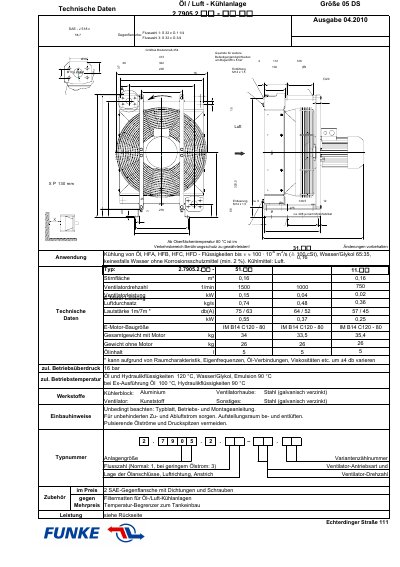

Funke 2.7905.2.xx-xx.xx Oil/Air Cooler Datasheet

This is a PDF document for oil, water/ethylene glycol, emulsion cooler

Brand: Funke
Category: Other Electronics
Document type: Datasheet
Language: German
Pages: 2
File format: PDF
File size: 103 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 5D7CD3F4CC00B14170D01359E2B3783F
PDF: Funke 2.7905.2.xx-xx.xx Oil/Air Cooler Datasheet PDF

About this manual

This document provides technical data for Funke Oil/Air Coolers, specifically model series 2.7905.2. It details cooling capabilities for various hydraulic fluids (HFA, HFB, HFC, HFD-F) and water/glycol mixtures, with air as the cooling medium. The datasheet lists performance parameters such as fan speed, air volume, and power consumption for different configurations. This manual is written in German.

What's inside

Technische Daten
Einbauhinweise
Leistungsdiaqramm
Druckverlustdiagramm
Werkstoffe
Zubehor
Betriebstemperatur
zul. Betriebsuberdruck

Specifications

Cooling Medium	Air
Max. Operating Pressure	16 bar
Max. Water/Glycol Temperature	90 C
Material (Cooler Block)	Aluminium
Material (Fan)	Plastic
Material (Other)	Galvanized Steel

Frequently asked questions

What fluids can be cooled by this unit?

The unit cools HFA, HFB, HFC, HFD-F fluids and water/glycol mixtures.

Is water alone allowed as a coolant?

No, water must contain a minimum of 2% corrosion protection agent.
