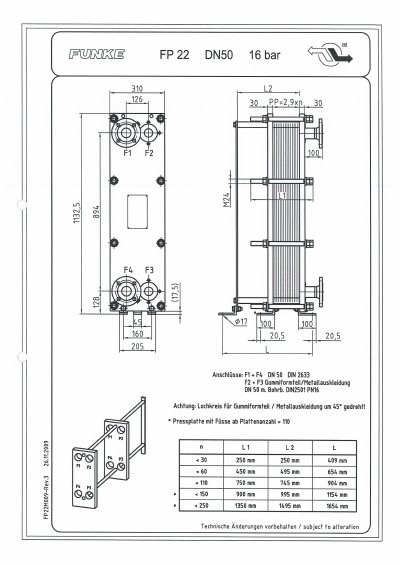

The document describes a DN50 16 bar valve with FP 22 material and L2 model. This valve is suitable for a working environment with a pressure of 16 bar and has four connection ports: F1, F2, F3, and F4. F2 and F3 are rubber parts/metal lining, while F1 and F4 are ON 50 DIN 2633 models. It should be noted that the hole pattern for the rubber parts/metal lining is rotated by 45° compared to the other parts. In addition, the document provides dimension parameters for valves of different thicknesses.
This document provides technical specifications for the Funke FP22 DN50 valve. It lists various dimensional data points corresponding to different connection sizes, ranging from 30 mm to 250 mm.
The document also details connection requirements, specifying DIN 2633 for connections F1+ and F4, and Gummiformteil/Metallauskleidung for F2+F3. It notes that the flange hole circle for the rubber insert/metal lining must be rotated by 45 degrees. This manual is written in German.
| Model | FP22 DN50 |
|---|---|
| Connection F1+ and F4 | DIN 2633 |
| Connection F2+F3 | Gummiformteil/Metallauskleidung |
| Flange Hole Circle Rotation | 45 degrees |
| Minimum Flange Count | > 110 |
The dimensions are 250 mm by 250 mm by 409 mm.
The dimensions are 900 mm by 995 mm by 1154 mm.
