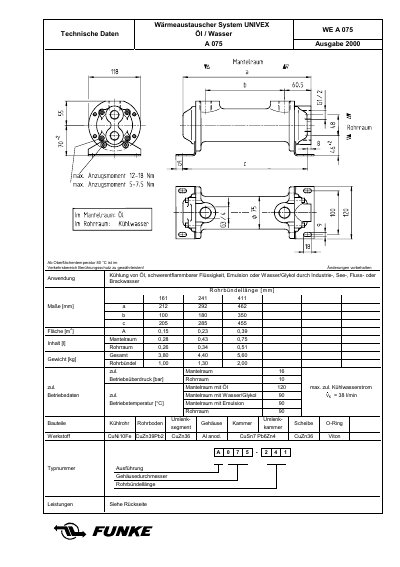

This document provides technical data of UNIVEX Heat Exchanger System, including dimensions, weight, operating pressure, etc. The system is suitable for cooling oil, non-flammable liquid, emulsion, or water/glycol through industrial, marine, river, or brackish water.
This document provides technical specifications for the Funke UNIVEXe WEA075 heat exchanger system designed for cooling flammable liquids, emulsions, or water-glycol. It covers various pipe bundle lengths with corresponding dimensions, surface areas, weights, and operating pressures.
The datasheet includes performance formulas to calculate cooling power based on oil flow rate and temperature differences, along with diagrams illustrating pressure loss versus cooling water flow. This manual is written in German.
| Operating Temperature (Jacket) | 90 C |
|---|
The maximum allowable operating pressure for the jacket is 12 bar.
