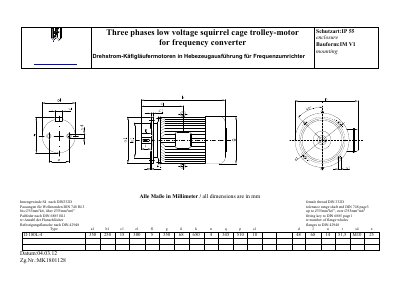

This is a data sheet for a three-phase low-voltage squirrel cage motor, including the motor's model, voltage, power, speed, rated current, insulation class, and outer dimensions.
This document provides technical specifications and dimensional details for the Franz Woelfer D 180L-4 motor. It is a three-phase, low-voltage, squirrel-cage design intended specifically for use with frequency converters in hoisting applications (Hebezeugausfiihrung).
The datasheet lists key protection and mounting standards, including IP55 enclosure rating, IM V1 mounting form, and compliance with DIN 332D for female threads. It also details shaft end tolerances according to DIN 748 and fitting keys per DIN 6885. This manual is written in German.
| Motor Type | Three phases low voltage squirrel cage trolley-motor |
|---|---|
| Application | Frequency converter / Hoisting equipment |
| Protection Class (IP) | IP 55 |
| Mounting Form | IM V1 |
It is a three-phase low voltage squirrel cage trolley-motor designed for use with frequency converters.
The document lists all dimensions in millimeters, with specific values such as a shaft diameter of 51.5 mm and a flange hole count of 6.
