The document is a product data sheet about a special type of connector. The connector is a cable plug with 4 poles, suitable for M 12 connector coding and belongs to the 825 series. It features a shieldable CAT 5 screw terminal and a shield ring version with a die-cast threaded ring. The connector has an IP 67 protection rating and EMC compatibility, making it suitable for electrical and mechanical environments. Its materials mainly include brass, gold, PA, and nickel-plated die-cast housing.

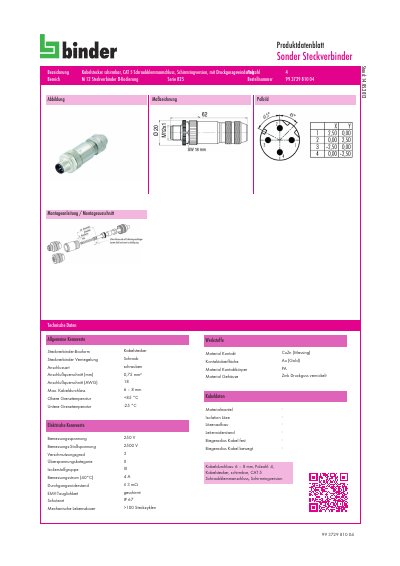

This document is a product datasheet for the Franz Binder 825 series, specifically the shielded M12 connector with screw terminal connection (Bestellnummer 99 3729 810 04). The connector features a die-cast thread and is designed for CAT 5 applications.
Technical specifications include a maximum cable diameter of 6-8 mm, a rated current of 4A at 40°C, and a rated voltage of 2.50V. The housing is made of nickel-plated zinc die-cast, while the contact body is PA and the contact is CuZn with a gold-plated surface. This manual is written in German.
| Series | 825 |
|---|---|
| Order Number | 99 3729 810 04 |
| Cable Diameter | 6 - 8 mm |
| Housing Material | Zinc Die-Cast |
| Contact Material | CuZn |
The maximum cable pass-through dimension is 6 to 8 mm.
This connector has a pole count of 4.
