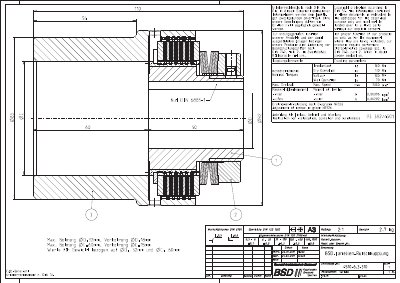

This document is a technical datasheet for the Rexnord BSD-Lamellen-Rutschkupplung (BSD Sliding Disc Coupling), model 4510-6,3-310. It provides specific performance parameters including nominal and maximum torques for both dry and wet operation, as well as maximum rotational speed. The document also details the physical dimensions for the shaft bores and pre-drilled holes. This manual is written in German.
| Nominal Torque (Dry Operation) | 160 Nm |
|---|---|
| Nominal Torque (Wet Operation) | 70 Nm |
| Inner Moment of Inertia | 0.00096 kgm2 |
| Outer Moment of Inertia | 0.00282 kgm2 |
| Max. Bore Diameter | 32mm |
| Pre-drilled Hole Diameter | 18mm |
| Weight | 2.7 kg |
The maximum speed is rated at 3000 min-1.
The maximum bore diameter is 60mm.
