The CIM dataCat vu125 is a VGA/USB 2.0 dual access KVM extender that supports a maximum distance of 125 meters. It connects the transmitter and receiver using Cat. 5 / 5x / 6 cables. It supports USB 2.0 transmission (up to 100 Mbit/s) between the transmitter and receiver, making it suitable for all USB devices such as keyboards, mice, storage devices, scanners, printers, data acquisition devices (DAQ), webcams, etc. It features plug and play installation and is compatible with CRT, TFT, and USB touchscreen monitors. It supports all types of USB mice, including their special functions, and all types of USB keyboards, including their special functions. The remote unit has a 4-port USB hub, and all USB devices can be connected to the receiver (up to 4 devices). It supports various USB devices such as scanners, printers, card readers, USB hard drives, USB CD drives, etc. The video adjustment is adjustable, and there is a local monitor connection on the local unit. The wiring is done using Cat. 5 / 5x / 6 installation cables, either shielded or unshielded solid cables. The devices are extremely compact. It comes with a PC connection cable and two power adapters. No software installation is required. It comes with a 24-month warranty.

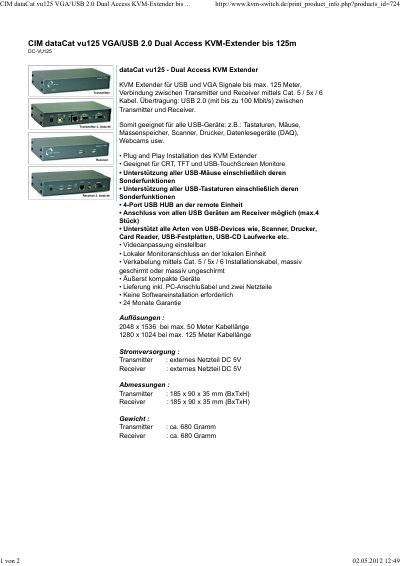

The CIM dataCat vu125 is a Dual Access KVM Extender designed to transmit USB and VGA signals over distances of up to 125 meters using Cat. 5e or Cat. 6 cabling. It supports USB 2.0 transfer speeds of up to 100 Mbit/s between the transmitter and receiver units. This manual is written in German.
| Video Resolution (max distance) | 1280 x 1024 |
|---|---|
| USB Transfer Speed | up to 100 Mbit/s |
| Cable Type | Cat. 5 / 5x / 6 |
| Power Supply (Transmitter) | DC 5V |
| Power Supply (Receiver) | DC 5V |
The device supports a connection distance of up to 125 meters.
Up to four USB sticks can be connected via the built-in hub.
