JVM JV 174-200 (140) Unbalance Vibrator Datasheet

This is a manual for JV174-200(140) unbalanced vibrator, which introduces the features of the product, including the working principle, technical parameters, installation and maintenance

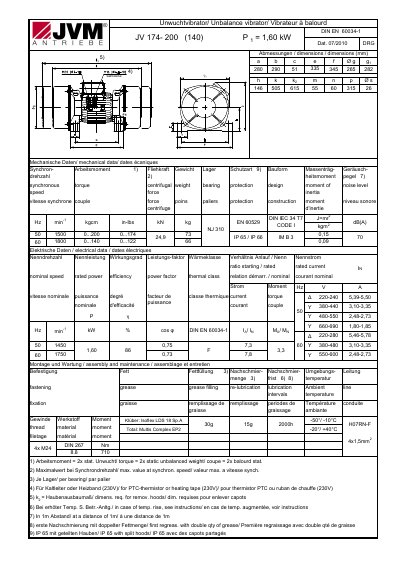

JVM JV 174-200 (140) Unbalance Vibrator Datasheet - cover page
Brand
JVM
Category
Motor
Document type
Datasheet
Language
German
Pages
1
File format
PDF
File size
78 KB
Published
10 July, 2012
Updated
01 October, 2023
MD5 checksum
A8AF4659E5F383C8A873AEA680CAA1F2
PDF
JVM JV 174-200 (140) Unbalance Vibrator Datasheet PDF

About this manual

This document provides technical data for the JVM JV 174-200 (140) unbalance vibrator. It lists mechanical dimensions, synchronous speed, torque, weight, and bearing protection details. The device is designed for industrial applications with specific mounting and maintenance requirements. This manual is written in German.

What's inside

  • Abmessungen / dimensions
  • Mechanische Daten / mechanical data
  • Elektrische Daten / electrical data
  • Montage und Wartung / assembly and maintenance
  • Befestigung / fastening
  • Fett / grease
  • Schutzart / protection

Specifications

Rated Power1 kW
Synchronous Speed (50 Hz)1500 min-1
Synchronous Speed (60 Hz)1800 min-1
Rated Torque (50 Hz)0...200 in-lbs
Rated Torque (60 Hz)0...140 in-lbs
Protection ClassIP 65 / IP 66
Grease Interval2000h

Frequently asked questions

What is the recommended grease interval?

The recommended grease interval is 2000 hours.

Download PDF (78 KB)
