This document provides information about the dimensions and technical specifications of 15.5 DRG, including protection rating, operating voltage, and torque.

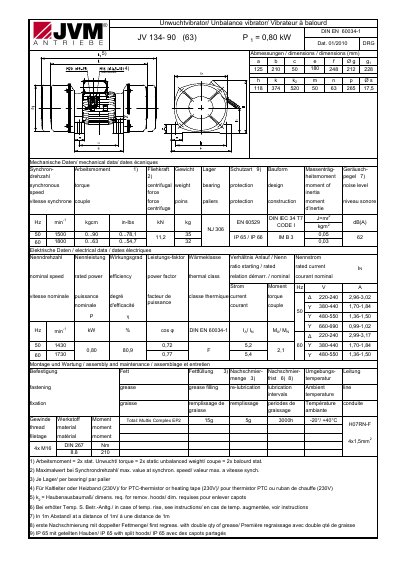

This document is a technical datasheet for the JVM JV 134-90 unbalance vibrator (also known as an unwuchtvibrator). It provides dimensional data, mechanical properties such as torque and speed, and electrical ratings including power factor and thermal class. The device operates at synchronous speeds of 1500 or 1800 RPM depending on the frequency. This manual is written in German.
| Synchronous Speed (50 Hz) | 1500 min-1 |
|---|---|
| Synchronous Speed (60 Hz) | 1800 min-1 |
| Protection Class | IP 65 / IP 66 IMB3 |
A total of 15 grams of Multis Complex EP2 grease is required.
The unit operates between -20°C and +40°C.
