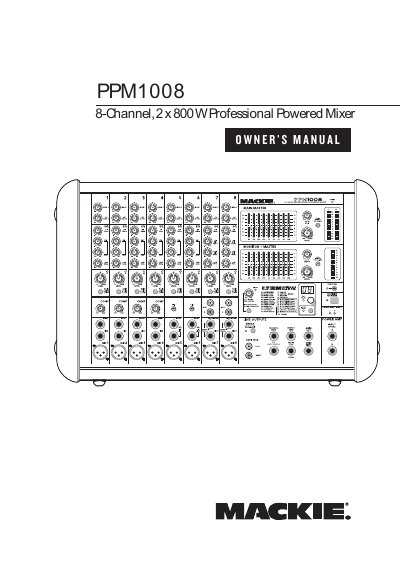

Mackie PPM1008 8-Channel Powered Mixer Owner's Manual

This manual introduces the features and usage of PPM1008 8-Channel, 2 x 800 W Professional Powered Mixer

Brand: Mackie
Category: amplifier
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 4.6 MB
Published: 10 July, 2012
Updated: 01 October, 2023
MD5 checksum: B060396A5AF066B07A82265864D804D8
PDF: Mackie PPM1008 8-Channel Powered Mixer Owner's Manual PDF

About this manual

The Mackie PPM1008 is an 8-channel, 2 x 800 W professional powered mixer designed for easy operation. It features all controls and input connection points on the front panel for quick adjustments on stage. The unit includes two internal fans to cool the power amplifier section and requires at least 6 inches of airspace behind it for proper ventilation.

What's inside

Important Safety Instructions
Setup
Connections
Operating Instructions
Speaker Outputs
Gain Switching
Phantom Power
Maintenance

Specifications

Channels	8-Channel
Power Output	2 x 800 W
Mic Connectors	XLR (3-pin)
Line Inputs	TS or TRS 1/4" plug
Speaker Load	4 ohms or greater
Cable Gauge	18 gauge

Frequently asked questions

What is the minimum airspace required behind the mixer?

There must be at least 6 inches of airspace behind the powered mixer for ventilation.

Can I connect a guitar directly to inputs 5 or 6?

Yes, you can connect a guitar directly to inputs 5 or 6 without a DI box if you press the hi-z switch on these channels.

What happens if the OL LED stays on for a large portion of the performance?

You should check that the gain switch is set correctly, as this indicates the signal level is too high.
