Checktemp®-Dip HI 98509-01 and HI 98510-01 are precision thermometers with a stainless steel weighted probe

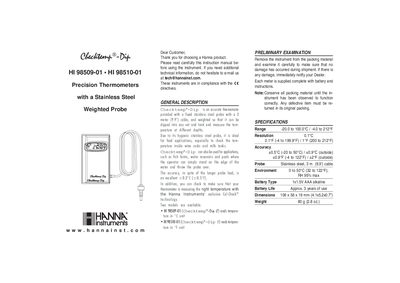

This manual provides instructions for the Checktemp-Dip precision thermometers, models HI 98509-01 and HI 98510-01. These instruments feature a fixed stainless steel probe with a 3-meter cable, designed for measuring temperature at different depths in vats, tanks, wine casks, and milk tanks. The device includes a Cal-Check technology to verify measurement accuracy.
| Range | -20.0 to 100.0°C / -4.0 to 212°F |
|---|---|
| Resolution | 0.1°C / 0.1°F (-4 to 199.9°F) / 1°F (200 to 212°F) |
| Accuracy | +0.5°C (-20 to 50°C) / +0.9°C (outside) |
| Probe | Stainless steel, 3m (9.9) cable |
| Battery | 1x1.5V AAA alkaline |
| Battery Life | Approx. 3 years of use |
| Dimensions | 106 x 58 x 19 mm (4.1x5.2x0.7") |
| Weight | 80 g (2.8 02.) |
The ideal operating temperature is in the -20 to 50°C (-4 to 120°F) range.
Move the Cal-check switch to the 'Test' position; the display should show 0.0°C (+0.5°C) or 32°F (+0.9°F).
The instrument requires a 1.5V AAA alkaline battery.
No, do not perform any measurement in microwave ovens to avoid damage or burns.
