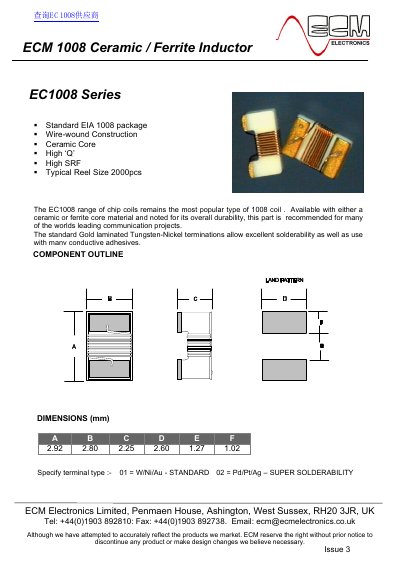

This document describes the features and characteristics of the ECM 1008 Ceramic / Ferrite Inductor, including standard EIA 1008 package, wire-wound construction, ceramic or ferrite core, high Q and high SRF. This product is recommended for communication projects and has excellent solderability and conductive adhesives.
The ECM 1008 series consists of wire-wound chip coils available with either a ceramic or ferrite core. These components are designed for use in communication projects and feature high Q and high Self-Resonant Frequency (SRF). The standard Gold laminated Tungsten-Nickel terminations allow for excellent solderability and compatibility with conductive adhesives.
The document details the physical dimensions of the EIA 1008 package and lists specific electrical parameters for various inductance values. Parameters include inductance tolerance, minimum Q factor, minimum SRF, maximum DC resistance (RDC), and maximum DC current (IDC) for both low and high inductance variants.
| Package Type | Standard EIA 1008 package |
|---|---|
| Construction | Wire-wound Construction |
| Core Material | Ceramic Core |
| Typical Reel Size | 2000pcs |
| Inductance Tolerance G | 2% |
The standard terminal type is W/Ni/Au, which consists of gold laminated tungsten-nickel.
