ECM 0805 Ceramic RF Chip Inductor is a high performance product from ECM Electronics Limited. It is designed for wireless LAN and remote RF sensor applications. Careful design ensures high self resonance frequencies and Q, making this component one of the most desired for these applications.

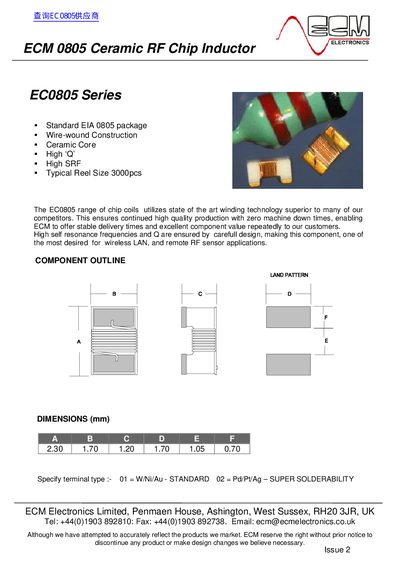

This document describes the ECM EC0805 range of ceramic RF chip inductors. The components utilize state-of-the-art wire-wound construction with a ceramic core to ensure high Q factors and self-resonant frequencies (SRF). They are designed for applications such as wireless LAN and remote RF sensors.
| Package Type | Standard EIA 0805 package |
|---|---|
| Construction | Wire-wound Construction |
| Core Material | Ceramic Core |
| Typical Reel Size | 3000pcs |
These components are intended for use in wireless LAN and remote RF sensor applications.
The standard terminal type is designated as 01.
A typical reel contains 3000 pieces.
