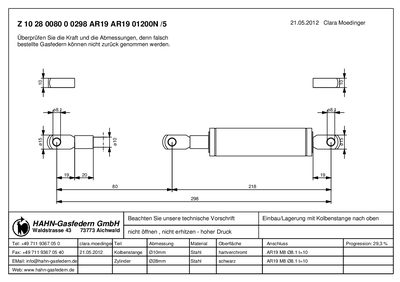

HAHN Gas Spring Z 10 28 0080 0 0298 AR19 AR19 01200N /5 Technical Data

This product is a gas spring produced by HAHN-Gasfedern. Its specification is Z 10 28 0080 0 0298 AR19 AR19 01200N/5, with a maximum force of 1200N.

Brand: HAHN
Category: Other
Document type: Product Leaflet
Language: German
Pages: 1
File format: PDF
File size: 15 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: C93E34BC7BFF0A4DF43E39A07B1407BB
PDF: HAHN Gas Spring Z 10 28 0080 0 0298 AR19 AR19 01200N /5 Technical Data PDF

About this manual

This document provides technical specifications for the HAHN gas spring model Z 10 28 0080 0 0298 AR19 AR19 01200N /5. It includes critical installation warnings, such as checking force and dimensions before ordering, and notes that incorrect orders cannot be returned. The document also specifies the correct installation orientation with the piston rod facing upwards. This manual is written in German.

What's inside

Technical Data
Installation Warning
Dimensions
Material
Surface Finish
Connection
Progression
Manufacturer Contact

Specifications

Piston Rod	210mm Steel hard chrome plated
Cylinder	28mm Steel black
Connection	AR19 M8 @8.1 t=10
Progression	29,3 %

Frequently asked questions

Can I return a gas spring if I ordered the wrong one?

No, incorrectly ordered gas springs cannot be returned.

What is the correct installation orientation for this gas spring?

The piston rod must be installed facing upwards.
