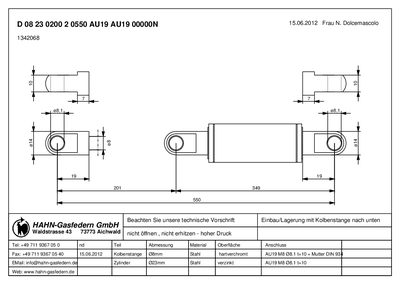

This document is a technical specification sheet for HAHN-Gasfedern GmbH's gas springs, model D 08 23 0200 2 0550 AU19 AU19 00000N 1342068 15.06.2012.
This document is a technical specification sheet for the Hahn gas spring identified by part number D 08 23 0200 2 0550 AU19. It provides specific dimensional and material details for the component.
The data sheet lists the piston rod diameter as 8mm made of steel with a hard chrome finish, and the cylinder diameter as 23mm made of galvanized steel. It also specifies the associated hardware, including an M8 nut DIN 93. This manual is written in German.
| Piston rod diameter | 8mm |
|---|---|
| Piston rod material | Steel hard chrome plated |
| Cylinder diameter | 23mm |
| Cylinder material | Steel galvanized |
| Nut specification | M8 DIN 93 |
The piston rod must be installed facing downwards.
The piston rod has a diameter of 8 mm.
