HAHN Gasfedern G 08 19 0200 1 0510 AS30 AS30 00370N handbook

This document is AS30 technical specifications, provides detailed product parameters

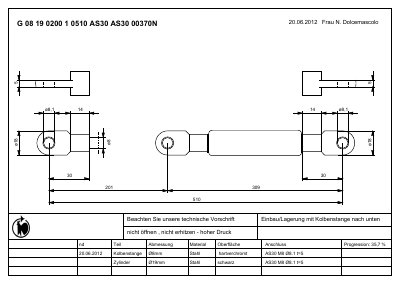

HAHN Gasfedern G 08 19 0200 1 0510 AS30 AS30 00370N handbook - cover page
Brand
HAHN
Document type
Product Leaflet
Language
German
Pages
1
File format
PDF
File size
16 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
8DC01B0A1453FEBF68B0071D4CEB81B2
PDF
HAHN Gasfedern G 08 19 0200 1 0510 AS30 AS30 00370N handbook PDF

About this manual

This document provides technical specifications for a HAHN gas spring with model number G 08 19 0200 1 0510. The device is identified by the part code AS30 AS30 00370N.

Key dimensions include an outer diameter of 8mm and a cylinder diameter of 19mm. The piston rod is made of steel with a hard chrome finish, while the cylinder body is also steel with a black finish. This manual is written in German.

What's inside

  • Dimensions
  • Material
  • Surface Treatment

Specifications

Piston Rod Diameter8mm
Cylinder Diameter19mm
Progression35.7 %

Frequently asked questions

What is the diameter of the piston rod?

The piston rod has a diameter of 8 mm.

What is the diameter of the cylinder?

The cylinder has a diameter of 19 mm.
