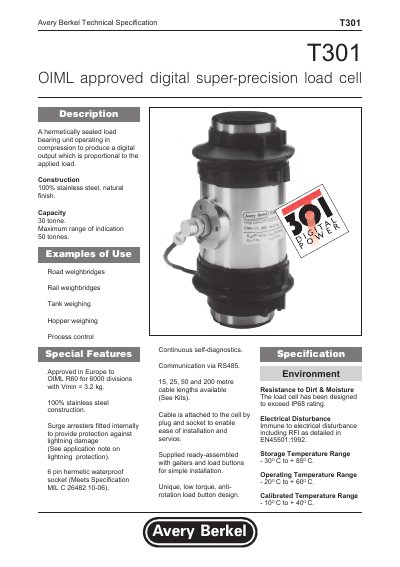

This document describes the technical specifications and features of Avery Berkel T301 load cell. The load cell is resistant to dirt and moisture, immune to electrical disturbance, and has various applications. It is approved by OIML and constructed with 100% stainless steel. The load cell has surge arresters for lightning protection and communicates via RS485.
The Avery Berkel T301 is an OIML approved digital super-precision load cell designed for high-accuracy weighing applications. Constructed from 100% stainless steel, it operates in compression to produce a digital output proportional to the applied load. The unit features hermetic sealing and internal surge arresters for protection against lightning damage.
| Capacity | 30 tonne |
|---|---|
| Maximum range of indication | 50 tonnes |
| Construction material | 100% stainless steel |
| Electrical Supply (Minimum) | +7.5v, DC |
| Electrical Supply (Maximum) | + 12v, DC |
| Communication | Balanced Pair RS485, 19200 Baud |
| Output Update Rate | 10 Readings/sec |
| Non-Linearity and Hysteresis | + 150ppm (Maximum) |
| Repeatability | 80ppm |
| Operating Temperature Range | - 20°C to + 60°C |
The overload rating without affecting performance is 225% of the rated capacity.
Yes, it has a 6 pin hermetic waterproof socket.
Cable lengths of 15, 25, 50, and 200 metres are available.
