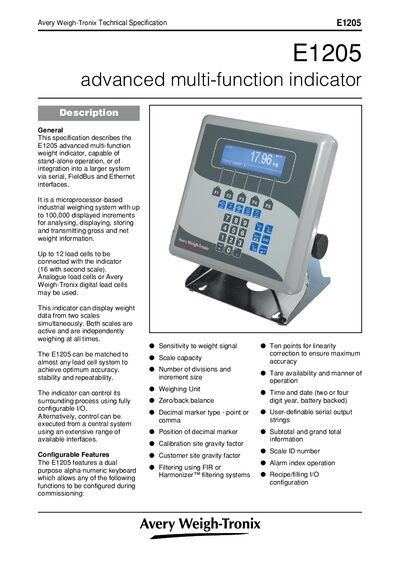

The E1205 advanced multi-function weight indicator is a microprocessor-based industrial weighing system with high accuracy, stability, and repeatability. It can be used as a stand-alone weight indicator or integrated into a larger system via serial, FieldBus, and Ethernet interfaces. The indicator can display weight data from two scales simultaneously and has configurable features.
The E1205 advanced multi‑function weight indicator can operate stand‑alone or be integrated into larger systems via serial, FieldBus and Ethernet interfaces. It supports up to 12 load cells (16 with a second scale) and offers configurable I/O, calibration, and recipe/filling functions for a wide range of weighing applications.
The document provides full electrical and mechanical specifications, including display type, resolution, power requirements, environmental ratings, and optional interface kits. Approvals, mounting options, and accessory part numbers are also listed.
| Display type | Blue back‑lit LED, 64 × 240 pixels |
|---|---|
| Maximum load cells (one scale) | 12 |
| Maximum load cells (two scales) | 16 |
| Input impedance | 1 MΩ paralleled with 2.2 nF |
| Supply voltage | 10 V DC |
| Power consumption (full config) | 30 VA max |
| Operating temperature | -10 °C to +40 °C |
| IP rating | IP54 |
| Internal resolution | 16,777,216 |
| Repeatability | ±0.01 % of full scale |
Up to 12 load cells can be connected on a single scale, and up to 16 when a second analogue input is fitted.
The indicator operates from –10 °C to +40 °C.
The E1205 consumes up to 30 VA maximum when all load cells are connected.
