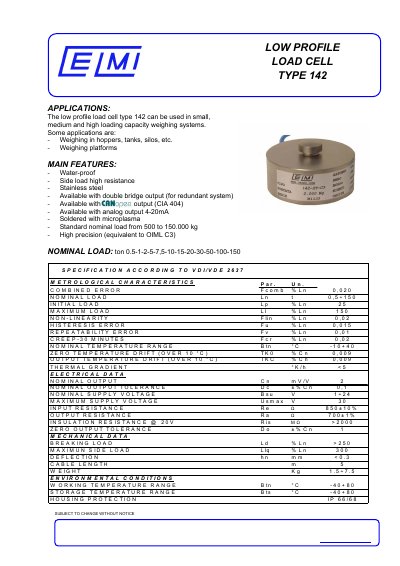

The low profile load cell type 142 can be used in small, medium and high loading capacity weighing systems.- Some applications are: Weighing in hoppers, tanks, silos, etc.- Weighing platforms- MAIN FEATURES: Water-proof - Side load high resistance - Stainless steel - Available with double bridge output (for redundant system) - Available with output (CIA 404) - Available with analog output 4-20mA - Soldered with microplasma - Standard nominal load from 500 to 150.000 kg - High precision (equivalent to OIML C3)
The Celmi Type 142 is a low profile load cell designed for small to high loading capacity weighing systems. It features water-proof construction made of stainless steel with high resistance to side loads. The device supports various output options including analog (4-20mA), CANopen, and double bridge configurations for redundant systems.
| Nominal Load Range | 500 to 150.000 kg |
|---|---|
| Combined Error | 0.020 %Ln |
| Non-Linearity | 0.02 %Ln |
| Hysteresis Error | 0.015 %Ln |
| Working Temperature Range | -40 to +80 °C |
| Housing Protection | IP 66/68 |
| Cable Length | 5 m |
The maximum supply voltage is 30 V.
The standard cable length is 5 meters.
The maximum side load resistance is 300% of the nominal load.
