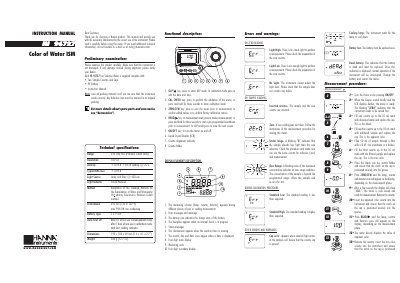

Hanna Instruments HI 96727 Color of Water ISM Instruction Manual

This document is an instruction manual for the HI 96727 Ion Selective Meter, which describes the features and instructions for using the meter.

Brand: Hanna Instruments
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 634 KB
Published: 10 July, 2012
Updated: 28 September, 2023
MD5 checksum: 0ACA899A55FC78E5CEEF7A6C25B06A65
PDF: Hanna Instruments HI 96727 Color of Water ISM Instruction Manual PDF

About this manual

The HI 96727 is a portable instrument designed to measure the color of water and wastewater using the Platinum Cobalt method. It measures apparent color, true color, and total color, with a range of 0 to 500 PCU. The device features an LCD display, a silicon photocell detector, and operates using a 9-volt battery.

What's inside

Preliminary examination
Technical specifications
Functional description
Errors and warnings
Measurement procedure
Validation and Calibration procedures
Battery management

Specifications

Range	0 to 500 PCU
Resolution	10 PCU
Accuracy	+10 PCU +5% of reading
Light Source	Lamp and filter @ 420 nm
Light Detector	Silicon Photocell
Environment Temperature	0 to 50°C
Battery Type	1x9 volt
Dimensions	192 x 104 x 69 mm
Weight	360 g

Frequently asked questions

What is the measurement range of the HI 96727?

The instrument measures from 0 to 500 PCU (Platinum Cobalt Units).

How long does the battery last?

One fresh battery lasts for around 750 measurements, depending on the light level.

What should I do if the display shows 'Err'?

Check for errors such as external light entering the cell, inverted cuvettes, or a dead battery.
