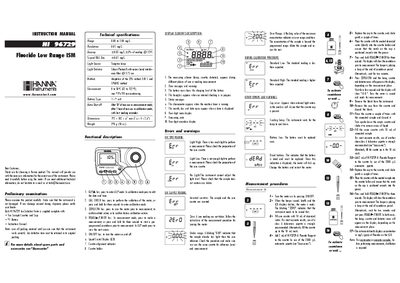

This document is the instruction manual of Hanna brand HI 96729 fluoride low concentration ion selective meter, which introduces the function and usage of the instrument
This manual provides instructions for the Hanna Instruments HI 96729 Fluoride Low Range ISM. It details technical specifications such as a range of 0.00 to 2.00 mg/l and accuracy of ±0.03 mg/l +3% of reading. The device uses a tungsten lamp and silicon photocell with a narrow band interference filter at 575 nm, adapting the EPA method 340.1 and SPADNS method.
| Range | 0.00 to 2.00 mg/l |
|---|---|
| Resolution | 0.01 mg/l |
| Light Source | Tungsten lamp |
| Filter wavelength | 575 nm |
| Operating temperature | 0 to 50°C |
| Battery Type | 1x9 volt |
| Dimensions | 192 x 102 x 67 mm |
The instrument measures fluoride concentrations from 0.00 to 2.00 mg/l with a resolution of 0.01 mg/l.
The device turns itself off after 10 minutes of non-use in measurement mode or after one hour in calibration mode.
You must fill the cuvette with exactly 10 ml of deionized water or sample solution.
