This document introduces the Verderair VA50 air diaphragm pump, which is characterized by high reliability, low air consumption and low spare parts costs, and can achieve a soft, reproducible delivery characteristic even in difficult applications.

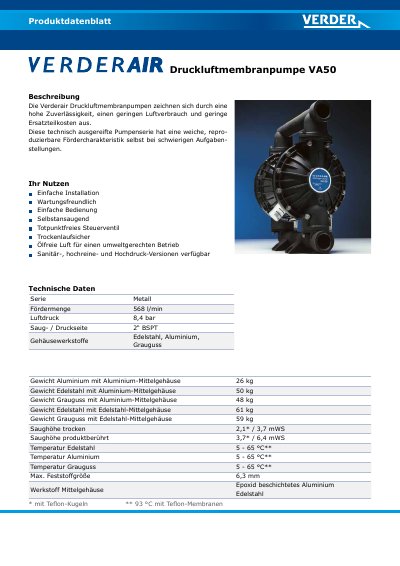

This document is a product datasheet for the VERDER VA50 series of pneumatic diaphragm pumps. The pumps are described as reliable, low air consumption, and low maintenance cost, featuring a soft, reducible pumping characteristic. They are available in sanitary, high-purity, and high-pressure versions. This manual is written in German.
| Series | Metall |
|---|---|
| Flow Rate | 568 l/min |
| Air Pressure | 8,4 bar |
| Suction / Pressure Side | 2* BSPT |
| Max. Solid Size | 6,3 mm |
| Weight (Aluminum) | 26 kg |
| Weight (Stainless Steel) | 50 kg |
| Weight (Cast Iron) | 48 kg |
The pump operates at a maximum air pressure of 8.4 bar.
The pump can handle solid particles up to 6.3 mm in size.
