The Verderair VA15 is a compressed air diaphragm pump with high reliability, low air consumption, and low spare part costs. This technically advanced pump series has a soft, reproducible pumping characteristic even in challenging tasks. The pump offers easy installation, maintenance-friendly, simple operation, self-priming ability, dead-end free control valve, dry-run safe, and oil-free air for environmentally friendly operation. It is available in sanitary, high purity, and high-pressure versions.
The VERDER VAIR series air diaphragm pumps are characterized by high reliability, low air consumption, and low spare part costs. The VA15 model is available in plastic versions with a flow rate of 57 l/min at an operating pressure of 7 bar.

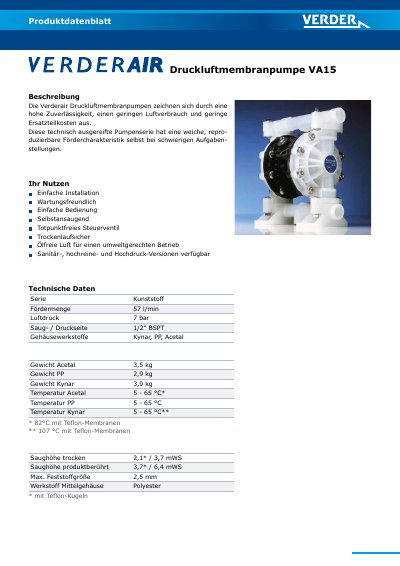

The pump features a top-point-free control valve and uses oil-free air for environmentally friendly operation. It offers sanitary, high-purity, and high-pressure versions, constructed from Kynar, PP, or Acetal materials with a maximum solid particle size of 2.5 mm. This manual is written in German.
| Flow Rate | 57 l/min |
|---|---|
| Operating Pressure | 7 bar |
| Connection Size | 1/2" BSPT |
| Housing Materials | Kynar, PP, Acetal |
| Weight (Acetal) | 3.5 kg |
The VA15 pump operates at an air pressure of 7 bar.
