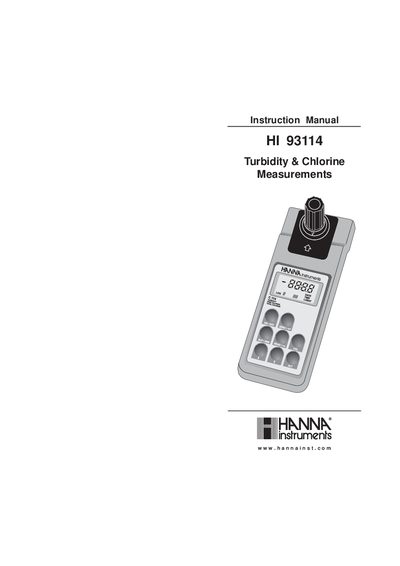

This manual provides detailed instructions on how to use and maintain the HANNA HI 93114 Turbidity and Chlorine Measurement Meter.
The Hanna Instruments HI 93114 is a rugged, microprocessor-based field instrument designed for potable water measurements. It performs free and total chlorine measurements as well as US EPA compliant turbidity measurements. The device features a large dual-level LCD display, a pure green LED light source to minimize interference from colored samples, and a silicon photocell for detection. It complies with GLP standards and includes a real-time clock for logging data with date and time stamps.
| Range Turbidity | 0.00 to 50.0 NTU |
|---|---|
| Range Free Cl | 0.00 to 2.50 mg/L |
| Range Total Cl | 0.00 to 3.50 mg/L |
| Resolution Turbidity | 0.01 and 0.1 NTU |
| Resolution Free Cl | 0.01 mg/L |
| Resolution Total Cl | 0.01 mg/L |
| Accuracy Turbidity | +0.5 NTU or +5% |
| Light Source | Pure green LED |
| Battery Type | 4x 1.5V AA alkaline |
| Auto-off | Selectable after 10 to 60 minutes |
| Dimensions | 220 x 82 x 66 mm |
| Weight | 510g |
The turbidity range is 0.00 to 50.0 NTU.
It uses 4x 1.5V AA alkaline batteries.
Yes, it uses a pure green LED light source to minimize interference caused by colored samples.
The auto-off is user-selectable after 10, 20, 30, 40, 50, or 60 minutes.
