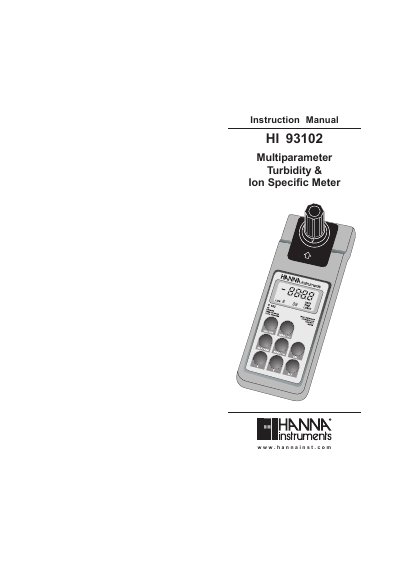

This document is the instruction manual for HI 93102 multiparameter turbidity and ion specific meter.
The Hanna Instruments HI 93102 is a portable microprocessor-driven multiparameter turbidity and ion specific meter. It measures Free & Total Chlorine, Cyanuric Acid, pH, Iodine, Bromine, Low Range Iron, and Turbidity. The device features a dual-level LCD, a real-time clock, and a logging mode capable of storing up to twenty-five time-tagged measurements.
| Turbidity Range | 0.00 to 50.0 NTU |
|---|---|
| Bromine Range | 0.00 to 8.00 mg/L |
| Free Chlorine Range | 0.00 to 2.50 mg/L |
| Total Chlorine Range | 0.00 to 3.50 mg/L |
| Cyanuric Acid Range | 0 to 80 mg/L |
| Bromine Resolution | 0.01 mg/L |
| Free Chlorine Resolution | 0.01 mg/L |
| Total Chlorine Resolution | 0.01 mg/L |
| Cyanuric Acid Resolution | 1 mg/L |
| Iodine Resolution | 0.4 mg/L |
| Low Range Iron Resolution | 0.01 mg/L |
| Light Source | Pure Green LED |
| Light Detector | Two Silicon Photocells |
| Power Source | 4 x 1.5V AA alkaline batteries |
| Battery Life | 60 hours or 1000 measurements |
| Auto-off | Selectable after 10, 20, 30, 40, 50 or 60 min. |
| Environment | 0 to 50°C (32 to 122°F) |
| RH max | 95% (non-condensing) |
| Dimensions | 220 x 82 x 66 mm |
| Weight | 510 g (1.1 Ib.) |
The instrument measures Free & Total Chlorine, Cyanuric Acid, pH, Iodine, Bromine, Low Range Iron and Turbidity.
The user can store up to twenty-five time-tagged measurements in RAM.
A pure green LED is utilized as a light source for both turbidimetric and colorimetric measurements.
The battery life is 60 hours or 1000 measurements.
