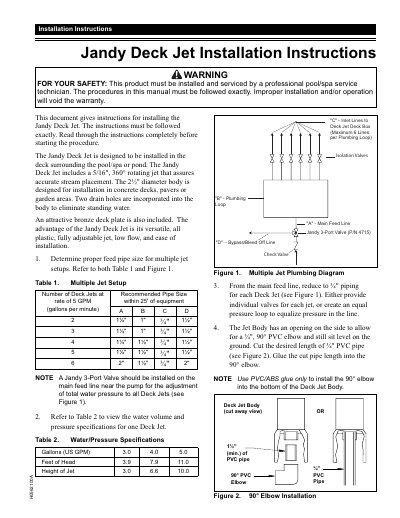

Jandy Deck Jet Installation Instructions

This document provides instructions for installing the Jandy Deck Jet, including installation steps and precautions.

Brand: Jandy
Category: Other
Document type: Installation Guide
Language: English
Pages: 2
File format: PDF
File size: 73 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 7B2FEE0EDFCD96FD2D446149227F60B0
PDF: Jandy Deck Jet Installation Instructions PDF

About this manual

This document provides instructions for installing the Jandy Deck Jet, a versatile, all-plastic jet designed for concrete decks, pavers, or garden areas. The unit features a 5/16" rotating jet and a 24" diameter body with drain holes to prevent standing water. Installation requires a professional pool/spa service technician to follow safety warnings and specific plumbing procedures.

What's inside

Installation Instructions
Multiple Jet Setup
Water/Pressure Specifications
Plumbing Diagram
90 Degree Elbow Installation
Deck Jet Location
Pressure Plug Installation
Jet Swivel Base Installation
Winterization

Specifications

Jet Diameter	5/16"
Body Diameter	24"
Flow Rate	3.0 to 5.0 GPM
Max Head Height	11.0 Feet
Max Jet Height	10.0 Feet

Frequently asked questions

Who should install the Jandy Deck Jet?

This product must be installed and serviced by a professional pool/spa service technician.

What is the maximum number of Deck Jets per plumbing loop?

The maximum number of lines per plumbing loop is 6.

What type of glue should be used for the 90 degree elbow?

Only PVC/ABS glue should be used to install the 90 degree elbow.
