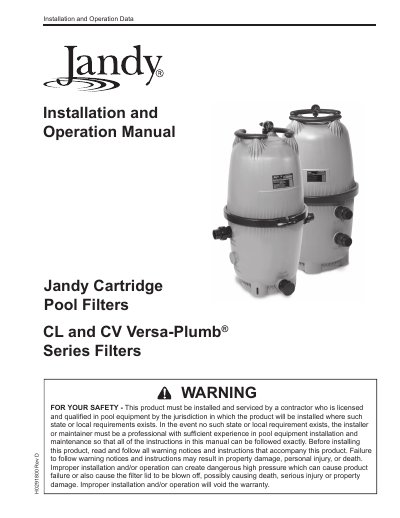

Jandy CL and CV Versa-Plumb Series Cartridge Filter Installation and Operation Manual

Brand: Jandy
Category: Other
Document type: Installation Guide
Language: English
Pages: 20
File format: PDF
File size: 2.3 MB
Published: 09 July, 2012
Updated: 25 July, 2012
MD5 checksum: 1B6EBC6F8222791CDF444DB38B11D973
PDF: Jandy CL and CV Versa-Plumb Series Cartridge Filter Installation and Operation Manual PDF

About this manual

This manual provides instructions for the installation and operation of Jandy CL and CV Versa-Plumb Series cartridge pool filters. It details safety warnings regarding pressure limits, general requirements for placement, and step-by-step procedures for installation, plumbing, and start-up.

What's inside

Safety Information
General Information
Installation Instructions
Start-Up and Operation
Filter Disassembly and Assembly
Maintenance
Winterizing
Troubleshooting
Parts List and Exploded View
Head Loss Curves

Specifications

Max. Flow	127, 150, or 150 gpm
Max. Working Pressure	50 psi
Normal Start Up Pressure	6-15 psi

Frequently asked questions

What is the maximum operating pressure for the filter?

The maximum operating pressure of the filter is 50 PSI.

Can the filter be connected to an unregulated city water system?

No, do not connect the system to an unregulated city water system or other external source producing pressures greater than 35 PSI.

What is the maximum water temperature for pressure testing?

The water temperature for a test must not exceed 100°F (38°C).
