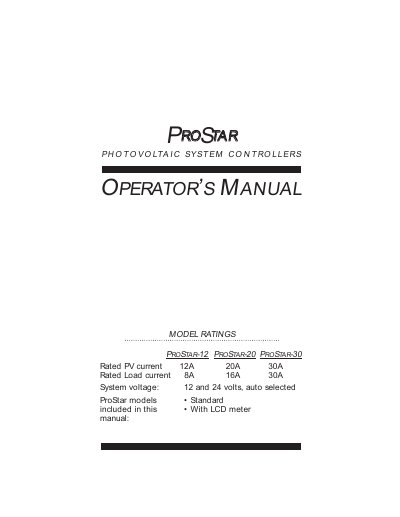

The ProStar is a highly sophisticated controller using advanced technology and microprocessor control. The battery charging process has been optimized for longer battery life and improved system performance. Many functions of the ProStar are unique. Although the ProStar is very simple to use, please take the time to read this operator’s manual and become familiar with the controller. This will help you to make full use of the many advantages the ProStar can provide to your PV system.
The document provides comprehensive instructions for the ProStar series of photovoltaic system controllers. It details general safety precautions regarding battery handling and installation orientation, ensuring proper ventilation to prevent overheating.
| Rated PV current (12A model) | 12A |
|---|---|
| Rated Load current (20A model) | 16A |
| System voltage selection | 12 and 24 volts, auto selected |
| LCD meter operating temperature | -30°C to +85°C |
Touch the SELECT PIN to the battery minus terminal to switch between sealed and flooded types.
All LED's will flash sequentially one time.
