Prostar 6900 is an enterprise-class storage server that is designed to meet the needs of users who want enterprise-class computing power but are on a budget. It is suitable for data-intensive computing environments. The storage capacity is up to 168TB. It has 8 4GB host channels and 8 4GB disk expansion ports, which can support up to 224 fiber channel disk drives. When used with a 4Gb SAN switch, Prostar 6900 can create a complete 4Gb enterprise SAN environment.
The Prostar 6900 is an enterprise‑grade storage server offering up to 168 TB of capacity, eight 4 Gbps host Fibre Channel ports, and eight 4 Gbps disk ports. It supports modular expansion up to 224 drives through 14 SBOD units and provides high performance with up to 375,000 IOPS and 1.6 GB/s cache bandwidth.

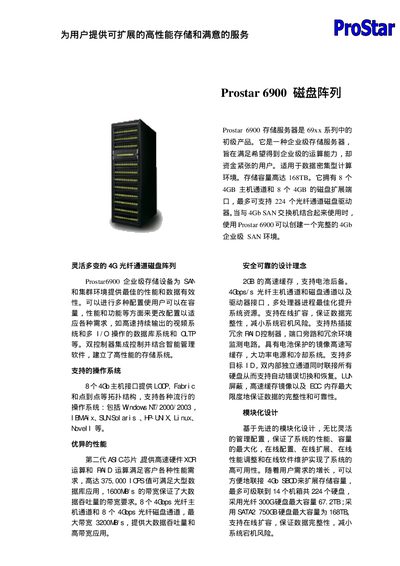

The included SANtricity management software enables easy configuration, capacity expansion, and data protection using DAC technology. The system is compatible with major operating systems such as Windows, Linux, Solaris, and HP‑UX, and meets industry certifications for clustering and SAN environments. This manual is written in Chinese.
| Maximum Storage Capacity | 168 TB |
|---|---|
| Disk Interface | 8 × 4 Gbps Fibre Channel ports (max 3200 MB/s) |
| Cache Size | 2 GB with battery backup |
| Maximum IOPS | 375,000 IOPS |
| Maximum Bandwidth (Cache) | 1.6 GB/s |
| Supported Hard Drives | Up to 224 drives (14 SBOD units) |
| Physical Dimensions | 4U, 19‑inch rack (174.5 mm H × 444.5 mm W × 609.6 mm D) |
| Weight | 43.9 kg |
It can support up to 224 hard drives using up to 14 SBOD expansion units.
The system includes a 2 GB cache with battery backup for data protection.
