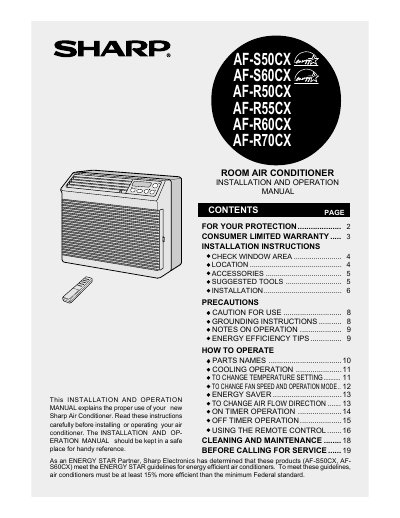

Sharp AF-R70CX/AF-R60CX/AF-R50CX Room Air Conditioner Installation and Operation Manual

This document is the operation manual for Sharp AF-S50CX, AF-S60CX, AF-R50CX, AF-R55CX, AF-R60CX, AF-R70CX air conditioners. It mainly introduces the installation, use and maintenance of air conditioners.

Brand: Sharp
Category: Air conditioner
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 247 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 62A06F14A78F4F3E77C31A146F6E0CE5
PDF: Sharp AF-R70CX/AF-R60CX/AF-R50CX Room Air Conditioner Installation and Operation Manual PDF

About this manual

This document serves as the Installation and Operation Manual for Sharp room air conditioners. It details the proper use of the unit, covering installation procedures for wooden sill double or single hung sash-type windows, including the use of the enclosed mounting kit. The manual also outlines safety precautions, grounding instructions, and specific notes on operation.

What's inside

For Your Protection
Consumer Limited Warranty
Installation Instructions
Check Window Area
Location
Accessories
Suggested Tools
Caution for Use
Grounding Instructions
Notes on Operation

Specifications

Voltage Rating	125V, 60Hz
Amp Rating	15 amp or more
Frequency	60Hz
Warranty Period	One (1) year parts and labor
Sealed Cooling System Warranty	Five (5) years

Frequently asked questions

What models are covered by this manual?

This manual covers the AF-S50CX, AF-S60CX, AF-R50CX, AF-R55CX, AF-R60CX, and AF-R70CX room air conditioners.

What type of window is this unit designed for?

The mounting kit is designed for wooden sill double or single hung sash-type windows.

What is the recommended electrical outlet rating?

The unit requires a three-pronged grounded electrical outlet rated 125V, 60Hz, 15 amp or more.
