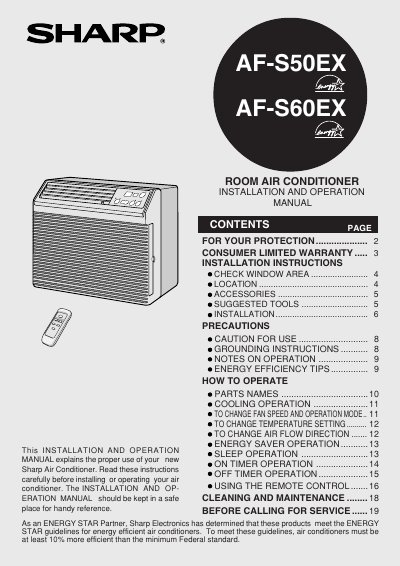

Sharp AF-S50EX AF-S60EX Room Air Conditioner Installation and Operation Manual

About this manual

This manual provides instructions for installing and operating Sharp AF-S50EX and AF-S60EX room air conditioners. It details the installation process, including window area checks, accessory usage, and specific steps for securing the unit in a window frame. The document also outlines safety precautions and grounding instructions.

What's inside

• Installation Instructions
• Consumer Limited Warranty
• Parts Names
• Cooling Operation
• Fan Speed and Operation Mode
• Temperature Setting
• Air Flow Direction
• Energy Saver Operation
• Sleep Operation
• Cleaning and Maintenance

Frequently asked questions

What is the minimum required height from the stool to the lower sash bottom for installation?

The space must be at least 14 7/8 inches (377mm) or more.

How much should the air conditioner unit be inclined during installation?

The unit must be inclined approximately 1 cm (3/8") to the back.

What length screws are required to secure the top angle of the unit?

Three provided screws with a length of 1 inch (25.4mm) are needed.
