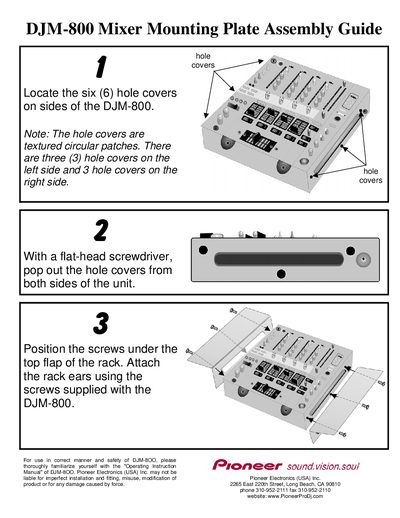

Pioneer DJM-800 Mixer Mounting Plate Assembly Guide

About this manual

This document serves as an assembly guide for the mounting plate of the Pioneer DJM-800 mixer. It details the process of removing hole covers from the unit and attaching the rack ears using supplied screws.

The guide includes a specific note regarding the location of the six hole covers, specifying that there are three on the left side and three on the right side of the unit. It also advises users to familiarize themselves with the separate "Operating Instruction Manual" for safe operation.

What's inside

• Locate the six (6) hole covers
• Pop out the hole covers
• Position the screws under the top flap
• Attach the rack ears
• Safety and liability notice

Frequently asked questions

How many hole covers are located on each side of the DJM-800?

There are three hole covers on the left side and three on the right side.

What tool is required to remove the hole covers?

You must use a flat-head screwdriver to pop out the covers.
