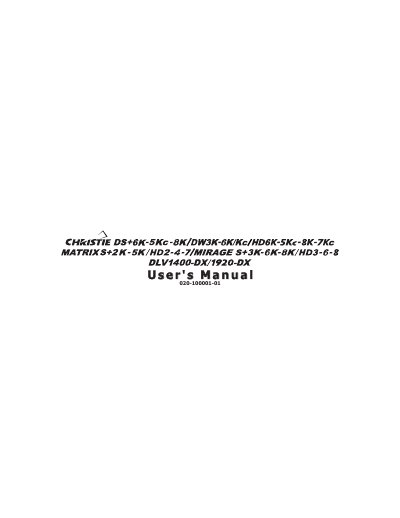

CHRISTIE DS+6K-5Kc-8K/DW3K-6K/Kc/HD6K-5Kc-8K-7Kc MATRIXS+2K-5K/HD2-407/MIRAGE S+3K-6K-8K/HD3-6-8/DLV1400-DX/1920-DX user manual

This document is the user manual of a projector. The document introduces the projector's environmental friendly use period and toxic and hazardous substance content table.

Brand: Christie
Category: Projector
Document type: User Manual
Language: English
Pages: 177
File format: PDF
File size: 12 MB
Published: 06 July, 2012
Updated: 30 September, 2023
Models: DLV1400-DX, DW3K-6K, 1920-DX
MD5 checksum: CFA3ECBEE1BFD3E1270E7DC5150EC5AE
PDF: CHRISTIE DS+6K-5Kc-8K/DW3K-6K/Kc/HD6K-5Kc-8K-7Kc MATRIXS+2K-5K/HD2-407/MIRAGE S+3K-6K-8K/HD3-6-8/DLV1400-DX/1920-DX user manual PDF

About this manual

This document serves as the user's manual for a series of professional 3-chip projectors based on Digital Light Processing (DLP) technology. It includes models such as the DS+, HD6K/5Kc/8K, Mirage S+ and HD series, DW3K, Matrix S+ and HD series, and DLV1400-DX/DLV1920-DX. The guide details features like native SXGA+, HD, or HD2 resolution, 10-bit video processing, and built-in multi-standard video decoders.

What's inside

Projector Overview
Quick Setup
Connecting Sources
Adjusting the Image
Working with PIP and Seamless Switching
Lamp and Filter Replacement
Replacing the Projection Lens
Troubleshooting Error Conditions

Specifications

Technology	3-chip projectors based on DLP technology
Video Processing	10-bit video processing
Input Slots	Two input slots for Optional Input Modules

Frequently asked questions

What types of projectors are covered in this manual?

The manual covers Christie DS+, HD6K/5Kc/8K, Mirage S+ and HD series, DW3K, Matrix S+ and HD series, and DLV1400-DX/DLV1920-DX projectors.

Can the projection lens be replaced while the projector is running?

It can be done but it may result in dust being drawn into the projector; it is recommended to turn off and cool the projector first.

Download PDF (12 MB)
