AR ARIS Lower Receiver Blueprint

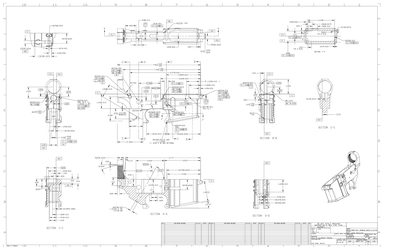

AR ARIS Lower Receiver Blueprint - cover page
Brand
AR
Category
Other
Document type
Parts List
Language
English
Pages
1
File format
PDF
File size
144 KB
Published
06 July, 2012
Updated
30 July, 2012
MD5 checksum
C18683F3D343D69E5858247A217616DA
PDF
AR ARIS Lower Receiver Blueprint PDF

About this manual

This document is a technical blueprint for the AR ARIS lower receiver. It provides detailed dimensional drawings with section views (A-A through F-F) and specifies the material as 7075-T6 aluminum forging. The drawing includes standard engineering notes regarding tolerances and finish requirements.

What's inside

  • SECTION A-A
  • SECTION B-B
  • SECTION C-C
  • SECTION D-D
  • SECTION E-E
  • SECTION F-F
  • MATERIAL SPECIFICATION
  • REVISION RECORD
  • DRAWING NOTES
  • DIMENSIONS

Specifications

Material7075-T6 Aluminum Forging
Product TypeLower Receiver
Drawing ScaleFull Scale

Frequently asked questions

What material is the ARIS lower receiver made from?

The part is manufactured using 7075 aluminum forging.
