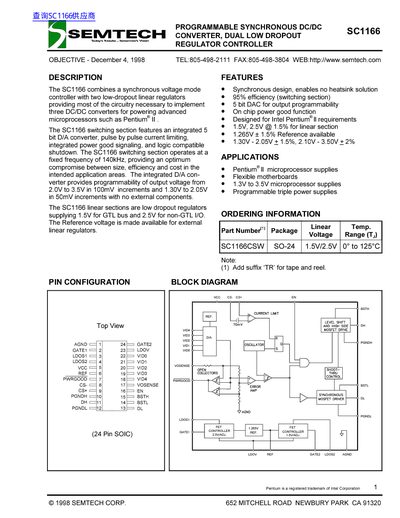

The SC1166 combines a synchronous voltage mode controller with two low-dropout linear regulators to implement three DC/DC converters. The switching section operates at a fixed frequency of 140kHz and features an integrated 5-bit D/A converter for programmable output voltages ranging from 2.0V to 3.5V without external components.
The device includes two low-dropout linear regulators supplying 1.5V for GTL bus and 2.5V for non-GTL I/O, along with a buffered reference voltage available for external use. Key features include pulse-by-pulse current limiting, integrated power good signaling, and logic-compatible shutdown.
| Oscillator Frequency | 140 kHz |
|---|---|
| Supply Voltage (VCC) | 4.75V to 5.25V |
| Output Voltage Range | 1.30V to 3.50V |
| Reference Voltage | 1.265V |
| Operating Temperature Range | 0 to +125°C (Junction) |
No, it provides programmability with no external components using an integrated D/A converter.
The linear sections supply 1.5V for GTL bus and 2.5V for non-GTL I/O.
