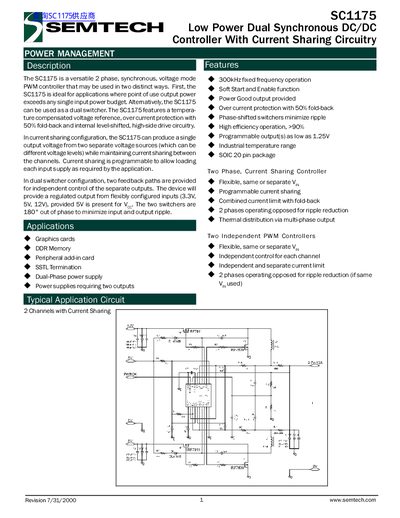

The SC1175 is a versatile 2-phase synchronous voltage mode PWM controller designed for applications where point-of-use output power exceeds a single input power budget. It features a temperature-compensated voltage reference, over-current protection with 50% fold-back, and internal level-shifted high-side drive circuitry. The device operates in two distinct modes: current sharing to produce a single output from two separate voltage sources, or dual switcher configuration for independent control of separate outputs.
| Oscillator Frequency | 300 kHz |
|---|---|
| Operating Ambient Temperature | 0 to 85 °C |
| Operating Junction Temperature | 0 to 125 °C |
| Output Voltage | 1.25V to 2.85V |
| Supply Voltage | 4.75 to 15 V |
| Supply Current | 10 mA |
| Reference Voltage | 1.25V |
| Package | SOIC 20 pin |
The SC1175 can be used as a current sharing controller for a single output or as a dual switcher for independent control of separate outputs.
The maximum supply voltage (Vcc) is 15V.
Yes, it features over-current protection with 50% fold-back.
