The SC1401 is a synchronous buck regulator designed to power the latest generation microprocessors in battery operated systems. It can provide both the I/O and core voltages utilizing synchronous rectification for the core supply voltage and an LDO N-Channel MOSFET controller for the I/O supply voltage. A 1.25 volt reference allows lower output voltages required by today’s portable microprocessors. The synchronous buck regulator is capable of achieving efficiencies up to 95%. The gate drive circuitry can deliver 2.0A peak currents, allowing the use of N-channel MOSFETs for lower switching and conduction losses. A digital soft start is provided to ensure orderly start up of the power supply without the need for external components. At light load in power save mode, the controller changes mode of operation by missing gate drive cycles, thus reducing gate drive current and improving efficiency. A logic high on PSAVE disables the power saving mode thus reducing noise. The SC1401 is fabricated in a high performance BiCMOS process. This process reduces the power dissipation in low current and shutdown operation modes and improves efficiency. The LDO controller is a high performance positive voltage regulator designed to provide a low noise power source to the microprocessor peripherals.
File format: PDF
Size: -
MD5 Checksum: 7A51EAFE813E3F8DEE86070512EDF2C6
Publication date: 06 July, 2012
Downloads: -

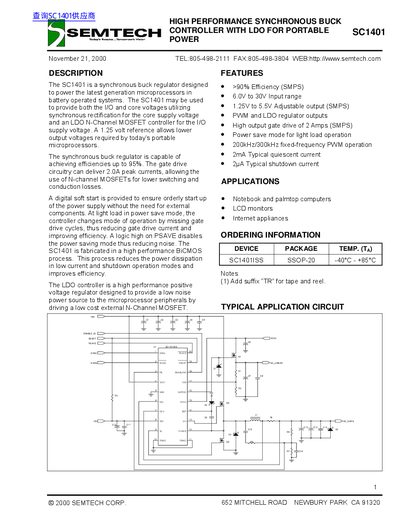

PDF Link: SEMTECH SC1401 handbook PDF
