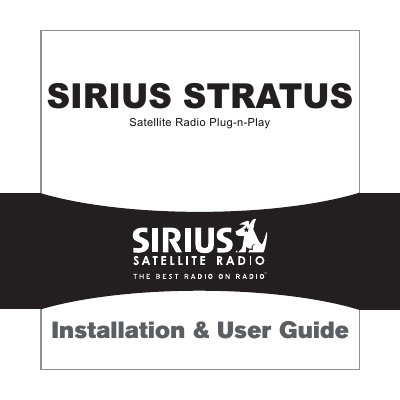

This document is an installation and user guide for the SIRIUS Stratus SV3 Plug-n-Play Radio. The radio allows you to enjoy SIRIUS Satellite Radio's digital entertainment in any vehicle with the included vehicle docking station. The Stratus SV3 is also compatible with the SUPH1 SIRIUS Universal Plug and Play Home Kit, the SUPV1 SIRIUS Universal Plug and Play Vehicle Kit, and the SUBX1 SIRIUS Plug and Play Universal Boombox (each sold separately). Use this manual to familiarize yourself with all of the Stratus' features and capabilities.
This manual serves as the official guide for the SIRIUS Stratus SV3 Plug-n-Play Radio, covering installation procedures, operation instructions, and troubleshooting. It details how to mount the vehicle dock, install the antenna, and connect power using the included cigarette lighter adapter. The document also explains how to subscribe to the SIRIUS service and utilize various menu options and features.
| Satellite Frequencies | 2322.293/2330.207 MHz |
|---|---|
| Terrestrial Frequencies | 2326.250MHz |
| Radio Power Requirements | 4.9–5.6 Volts, Negative Ground, DC |
| Cigarette Lighter Adapter Power Requirements | 9–16 Volts, Negative Ground, DC |
| Total Harmonic Distortion (THD) | <0.2% |
| Signal-to-noise (S/N) | Greater than 73dB |
| Fuse Requirement | 2A ATC |
| Radio Dimensions | 114.3mm x 48.26mm x 15.24mm (4.5” x 1.9” x 0.6”) |
| Radio Weight | 85.0g (3.0 oz.) |
| Antenna Type | Low Profile Magnetic Antenna |
| Cable Length | 21’ (single micro-cable) |
| Connector Type | SMB (right-angle) |
| Audio Interface | 1/8” / 3.5mm Stereo Jack |
| FM Out Interface | 2.5mm Jack |
The radio is designed to operate between -20° to +85° C (-4° to +185° F).
No, the vehicle dock must be powered using the included Cigarette Lighter Adapter only.
Turn the power off immediately and disconnect the unit from any power source.
You can visit http://www.sirius.com for the latest information.
