BUK150-50DL is a logic level TOPFET product from Philips Semiconductors. It is manufactured using TOPFET2 technology and has a maximum voltage of 50 V and a maximum current of 20 A.

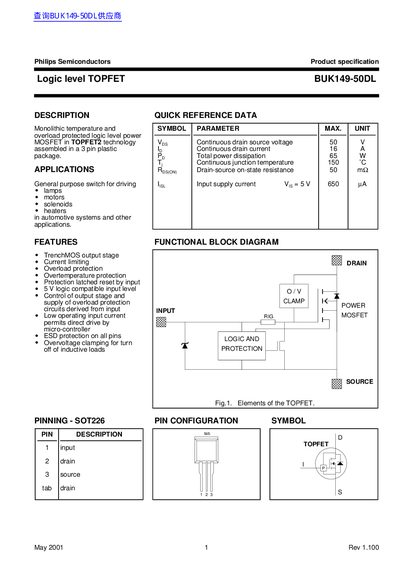

The Philips BUK149-50DL is a logic level power MOSFET utilizing TOPFET2 technology, designed as a general-purpose switch for driving lamps, motors, solenoids, and heaters in automotive and other applications. The device features a monolithic temperature and overload protection system, including overtemperature protection, short circuit load protection, and overvoltage clamping for inductive loads.
The component is available in a low-profile 3-lead SOT226 plastic package. Key specifications include a continuous drain-source voltage of 50 V, a continuous drain current of 16 A, and a total power dissipation of 65 W. The device operates with 5 V logic compatible inputs and includes features such as a latched reset by input and protection on all pins.
| Continuous drain source voltage | 50 V |
|---|---|
| Package type | SOT226 |
The device is compatible with 5 V logic inputs.
