Samson CS Series Capsule Select Microphone User Manual

The Samson CS Series Microphone is a professional handheld microphone featuring two interchangeable neodymium dynamic microphone capsules for vocal and instrument applications.

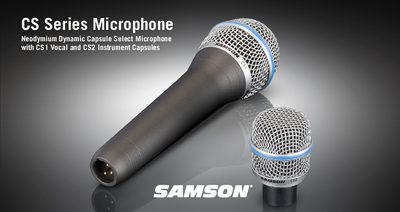

Samson CS Series Capsule Select Microphone User Manual - cover page
Brand
CS
Document type
User Manual
Language
English
Pages
8
File format
PDF
File size
1.1 MB
Published
05 July, 2012
Updated
30 September, 2023
MD5 checksum
9F80772C26EEA600409614FB9B73B3C5

About this manual

The Samson CS Series is a professional handheld microphone designed with an interchangeable capsule system. It includes two neodymium dynamic capsules: the CS1 optimized for vocals with minimal proximity effect, and the CS2 tailored for instruments to withstand high signal pressure levels. The unit features a rugged zinc alloy die-cast case and gold-plated XLR connectors.

What's inside

  • Introduction
  • Features
  • Changing the Capsule
  • Caring for your CS Microphone
  • Operating Notes
  • Microphone Placement

Specifications

Frequency Response (CS1)60Hz~18kHz
Sensitivity (CS1)-55dBV/Pa
Rated Impedance250 ohm
Polar PatternSuper Cardioid
Frequency Response (CS2)50Hz~18kHz

Frequently asked questions

What are the two capsule types included?

The CS Series includes a CS1 vocal capsule and a CS2 instrument capsule.

What is the recommended distance for vocals?

For a full sound with increased low frequency output, place it less than 2 inches from lips; for a balanced natural sound, use 2-4 inches.
