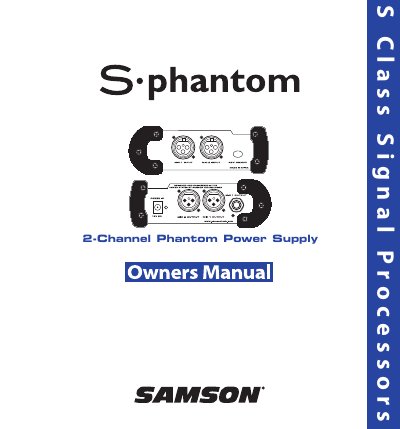

Samson S:phantom 2-Channel Phantom Power Supply User Manual

About this manual

The Samson S:phantom is a two-channel, 48-volt phantom power supply designed to power condenser microphones when the connected mixer or recorder lacks this feature. It features balanced XLR inputs and outputs, as well as a convenient 1/4-inch phone jack output for Mic 1.

What's inside

• Introduction and Features
• Front and Rear Panel Layout
• Operating the S:phantom
• Typical Set-up
• Wiring Guide

Frequently asked questions

What voltage does the S:phantom supply for condenser microphones?

The S:phantom is a two-channel, 48-volt phantom power supply.

What type of microphone inputs and outputs does the unit have?

The unit has two balanced XLR microphone inputs and two balanced XLR microphone outputs.

Is a power adapter included with the S:phantom?

Yes, an 18 Volt DC adapter is included with the unit.
