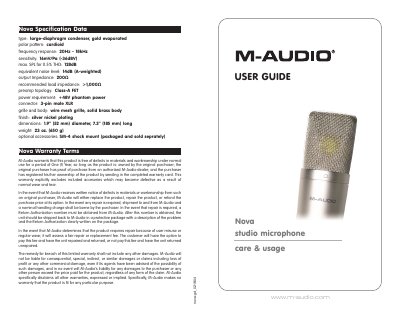

The M-Audio Nova is a single-pattern cardioid microphone with a frequency response of 20Hz-18kHz. Its features include a 1.1-inch evaporated gold diaphragm, solid brass capsule and body, and hard mount.
The M-Audio Nova is a large-diaphragm condenser microphone featuring a 1.1-inch evaporated gold diaphragm and a solid brass body with silver nickel plating. It utilizes a single-pattern cardioid polar pattern to reject background noise, making it suitable for vocals, acoustic instruments, guitar amps, and room recordings.
To operate the Nova, connect it via a high-quality XLR cable to a preamp or mixer channel that supplies +48V phantom power. The guide details the correct sequence for connecting and disconnecting the microphone to prevent pops and surges, along with specific care instructions such as avoiding moisture, physical shock, and temperature extremes.
| Diaphragm Type | 1.1" diameter evaporated gold diaphragm |
|---|---|
| Polar Pattern | single-pattern cardioid |
| Frequency Response | 20Hz-18kHz |
| Max SPL (0.5% THD) | 128dB |
| Equivalent Noise Level | 14dB (A-weighted) |
| Output Impedance | 200Ω |
| Power Requirement | +48V phantom power |
To connect, turn gain down, disengage phantom power, connect via XLR cable, engage phantom power, then turn up gain. To disconnect, reverse these steps (turn gain down, disengage phantom power).
The microphone maintains less than 0.5% total harmonic distortion up to a maximum SPL of 128dB.
The microphone requires +48V phantom power to operate and must be connected via XLR.
Users must turn gain down, disengage phantom power, connect the cable, engage phantom power, and then turn up the gain.
