M-Audio Black Box RELOADED User Guide

Introduces the new version 2 firmware inside the front panel connectors, rear panel connectors, top panel, presets and drumbeats, editing guitar amp and compression settings

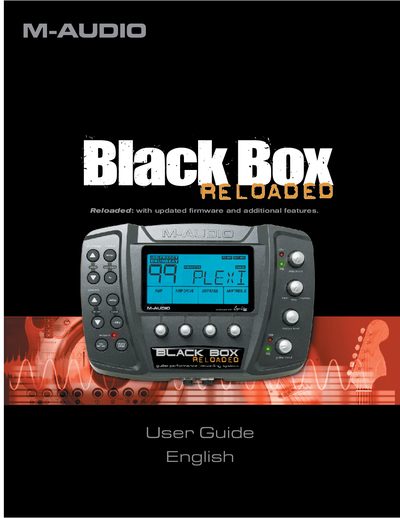

M-Audio Black Box RELOADED User Guide - cover page
Brand
M-Audio
Category
Other Electronics
Document type
User Manual
Language
English
Pages
56
File format
PDF
File size
5.3 MB
Published
04 July, 2012
Updated
30 September, 2023
MD5 checksum
18A40CE06FC05C9B5B462FCFEF01E283

About this manual

The M-Audio Black Box RELOADED is a versatile musical tool designed for songwriting and performance. It combines 40 amp models, 121 modulation and filter effect types, independent delay, reverb, compression, and 100 drumbeats into a single unit. All effects automatically lock to the tempo of the selected drumbeat or recording software.

What's inside

  • Introduction
  • What's in the Box
  • Minimum Computer System Requirements
  • Front Panel Connectors
  • Rear Panel Connectors
  • Top Panel Controls
  • Presets and Drumbeats
  • Editing Effects Settings
  • Driver Installation
  • Troubleshooting

Specifications

Amp Models40
Effect Types121
Drumbeats100
Audio Resolution24-bit/44.1 kHz

Frequently asked questions

What are the minimum Windows system requirements?

The computer must have a Pentium III processor at 500 MHz, 128 MB RAM, and run Windows XP (SP2) with DirectX 9.0 or higher.

What are the minimum Mac OS system requirements?

The computer must be a Macintosh G3/G4 at 500 MHz, have 512 MB RAM, and run OSX 10.3.9 or 10.4.4.

How do I select the next drumbeat?

Press the Drumbeat Increment (up arrow) key to show the current number and name, then press it again within three seconds to select the next higher number.
