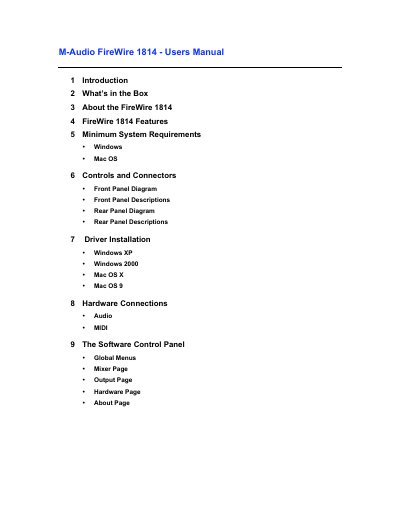

This document is the M-Audio FireWire 1814 user manual, introducing the features and characteristics of the product, including product functions, system requirements, connection methods, and usage methods.
The M-Audio FireWire 1814 is a professional, portable audio and MIDI interface designed for laptop or desktop computer users. It features eight unbalanced analog inputs, four balanced/unbalanced analog outputs, and supports high-resolution recording and playback via IEEE 1394 (FireWire) bus technology. The device includes two high-quality microphone/instrument preamps, ADAT Lightpipe, and S/PDIF I/O capabilities.
| Analog Inputs | 8 unbalanced 1/4" TS |
|---|---|
| Analog Outputs | 4 balanced/unbalanced 1/4" TRS |
| Sampling Rate (Analog Inputs 1/2) | 44.1kHz to 192kHz |
| Sampling Rate (Analog Inputs 3-8) | 44.1kHz to 96kHz |
| Frequency Response (192kHz) | +/- 1 dB, 22Hz – 80kHz |
| Max SNR (ADC) | 105dB |
| THD + N | <0.00301% |
A Pentium 3 – 800 MHz CPU, 256 MB RAM, and DirectX 9.0b or higher are required.
Yes, it can be bus powered via a six-pin FireWire connection, but a power adapter is needed for four-pin connections.
No, the device is not supported under Windows 98, 98SE, or Windows ME.
