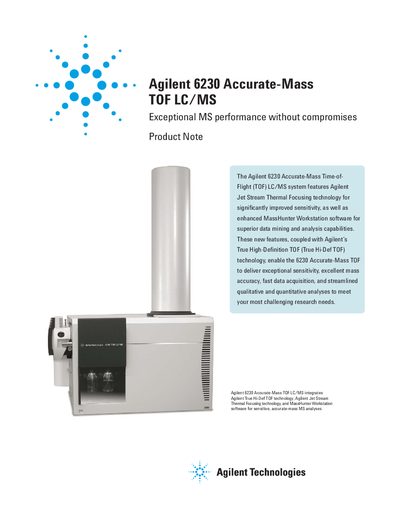

The Agilent 6230 Accurate-Mass Time-of-Flight (TOF) LC/MS system features Agilent Jet Stream Thermal Focusing technology for significantly improved sensitivity, as well as enhanced MassHunter Workstation software for superior data mining and analysis capabilities. These new features, coupled with Agilent’s True High-Definition TOF (True Hi-Def TOF) technology, enable the 6230 Accurate-Mass TOF to deliver exceptional sensitivity, excellent mass accuracy, fast data acquisition, and streamlined qualitative and quantitative analyses to meet your most challenging research needs.
The Agilent 6230 Accurate-Mass TOF LC/MS system integrates True Hi-Def TOF technology, Jet Stream Thermal Focusing technology, and MassHunter Workstation software to deliver exceptional sensitivity, excellent mass accuracy, and fast data acquisition. It is designed for profiling, identifying, characterizing, and quantifying low molecular-weight compounds and biomolecules with confidence.
| Mass Accuracy | Sub 1-ppm |
|---|---|
| Mass Resolution | > 20,000 |
| Dynamic Range | Up to 5 orders |
| Sensitivity | Low picogram |
| Data Acquisition Rate | Up to 40 spectra/second |
| Mass Range | 20,000 m/z |
| Sensitivity Improvement | 5-fold |
The system supports demanding applications such as proteomics, metabolomics, impurity testing, product degradation studies, forensics, food safety, and environmental analyses.
It significantly increases LC/MS sensitivity by improving the spatial focusing of electrospray droplets, resulting in higher MS signal intensities and improved signal-to-noise ratios.
