GHI Electronics ChipworkX Module User Manual

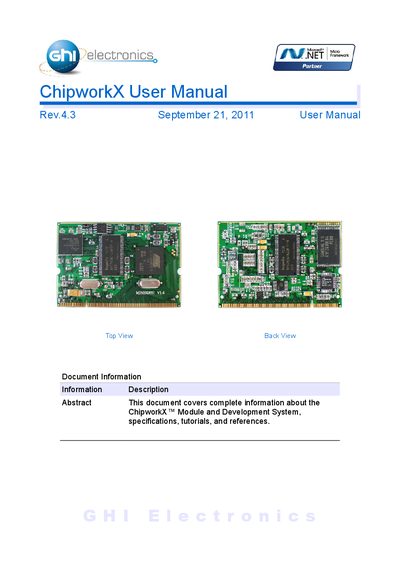

This document covers complete information about the ChipworkX™ Module and Development System, specifications, tutorials, and references.

Brand: GHI
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 50
File format: PDF
File size: 1.9 MB
Published: 03 July, 2012
Updated: 30 September, 2023
MD5 checksum: EF61C197E4FF4B1071F0730D77F216E1
PDF: GHI Electronics ChipworkX Module User Manual PDF

About this manual

The GHI Electronics ChipworkX Module is an OEM board combining an ARM9 processor, memory, and various interfaces on a small footprint. It hosts Microsoft's .NET Micro Framework and includes exclusive features such as a full USB host stack, database support, and native code runtime libraries. The module is designed for rapid product development in resource-constrained embedded systems.

What's inside

What is Microsoft .NET Micro Framework
ChipworkX Module Architecture
ChipworkX Development System
Pin-Out Description
ChipworkX On Boot Up
TinyBooter
ChipworkX Firmware
ChipworkX Features
Advanced Users
ChipworkX design Considerations

Specifications

Processor	200 MHz 32-bit ARM9 Processor
RAM	64MB
Internal Flash	256MB
Flash	8MB
Digital I/O Pins	80
Operating Temperature	0°C to +70°C
Dimensions	67.6mm x 47mm

Frequently asked questions

What is the ChipworkX Module?

The ChipworkX Module is a combination of hardware and software on a small OEM board that hosts Microsoft's .NET Micro Framework with various drivers.

What exclusive features does ChipworkX include?

ChipworkX includes exclusive features such as USB host, database support, and native code runtime libraries (RLP).

What is the purpose of the TinyBooter?

TinyBooter allows for firmware updates and provides emergency bootstrap access to the ChipworkX Module.
