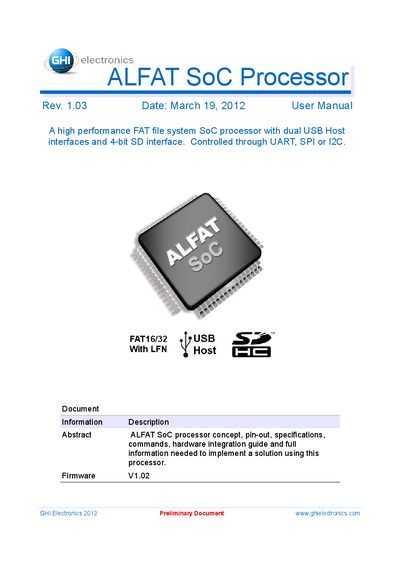

This document introduces the concept, pin-out, specifications, commands, hardware integration guide and full information needed to implement a solution using this processor
The GHI Electronics ALFAT SoC processor is an ARM Cortex-M3 based device designed to provide a robust FAT16/32 file system engine. It integrates built-in drivers for accessing storage media, including two USB 2.0 host ports and SD/SDHC/MMC cards, eliminating the need for complex licensing or extensive development resources.
The processor communicates with a host microcontroller via UART, SPI, or I2C interfaces, allowing for simple command-based control of file operations such as read, write, seek, and delete. It supports Long File Names (LFN) licensed by Microsoft and offers high-speed data access rates up to 4000 KBytes/sec on supported media.
| Processor Architecture | ARM Cortex-M3 |
|---|---|
| File System Support | FAT16 and FAT32 |
| USB Interfaces | Dual USB 2.0 Host |
| SD Interface | 4-bit SD interface |
| Max File Access Speed (SD) | Up to 4000 KBytes/sec |
| Package Type | LQFP 64 pin |
| Operating Temperature | -40°C to +85°C |
The processor is controlled through UART, SPI or I2C interfaces.
Yes, it supports LFN licensed by Microsoft for commercial use without additional licensing.
The processor allows up to 8 simultaneous file access.
