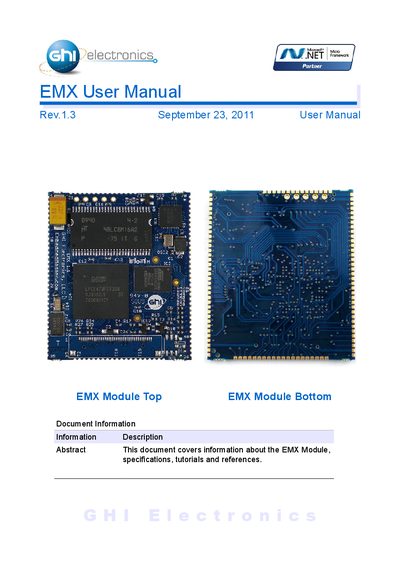

This document covers information about the EMX Module, specifications, tutorials and references. The EMX Module is a .NET Micro Framework based solution with extended features and example applications.
The GHI Electronics EMX Module is a sophisticated embedded hardware solution based on the Microsoft .NET Micro Framework. It combines an ARM processor, Flash, RAM, and Ethernet PHY on a small 8-layer board to offer a simple platform for developing network-enabled embedded systems. The module supports exclusive features such as USB host, PPP networking, and native code runtime libraries (RLP) at no extra cost.
| Processor | 76 MHz 32Bit Processor |
|---|---|
| RAM | 16MB |
| Flash Memory | 4.5MB |
| GPIO Pins | 76 |
| Interrupt Inputs | 39 |
| Analog Inputs | 7 10Bit |
| Analog Output | 10Bit |
| WiFi Driver | 2G2100 |
| Operating Temperature | -40°C to +85°C |
| Current Consumption (Hibernate) | 40mA |
The EMX Module is a combination of hardware (ARM Processor, Flash, RAM, Ethernet PHY) on a small SMT OEM 8-Layer board that hosts Microsoft's .NET Micro Framework.
Yes, the EMX Module includes exclusive features such as full USB host stack, PPP networking, and more.
The EMX Module operates within a temperature range of -40°C to +85°C.
