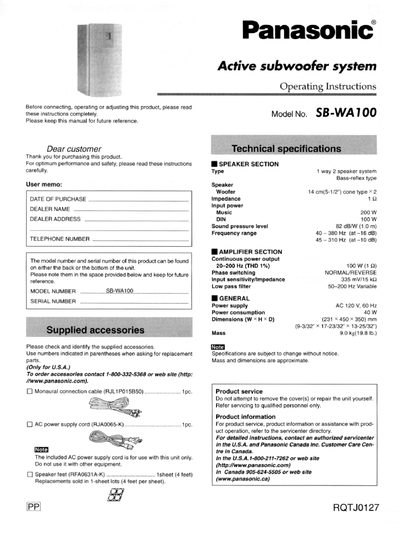

This document provides operating instructions for the Panasonic SB-WA100 active subwoofer system. It details the included accessories, safety precautions, and proper positioning of the unit relative to other speakers and televisions. The guide explains how to attach the rubber feet and connect the monaural cable to a receiver or amplifier.
| Type | 1 way 2 speaker system |
|---|---|
| Bass-reflex type | Bass-reflex type |
| Speaker Woofer | 14 cm(5-1/2") cone type * 2 |
| Impedance | 12 |
| Input power Music | 200 W |
| Input power DIN | 100 W |
| Sound pressure level | 82 dB/W (1.0 m) |
| Frequency range | 40 - 380 Hz (at -16 dB) |
| Power supply | AC 120 V, 60 Hz |
| Power consumption | 40W |
| Dimensions | (231 x 450 x 350) mm |
| Mass | 9.0 kg(19.8 Ib.) |
The model number and serial number can be found on either the back or the bottom of the unit.
Turn the television off for about 30 minutes to allow the demagnetizing function to correct the problem, or move the speaker further away.
Reduce the volume level from the receiver, check the equipment, turn off the power, and then turn it on again.
